An algorithm that saves data objects. More...

#include <PersistenceAlgo.h>

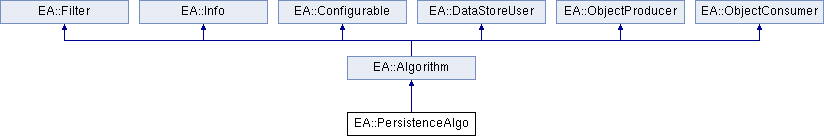

Inheritance diagram for EA::PersistenceAlgo:

Public Member Functions
	PersistenceAlgo (const std::string &name)

bool	SetPersistenceServiceManager (PersistenceServiceManager &persManager)
	Method to set the persistence manager. More...

bool	Initialize ()
	Connects and initializes the persistence service. More...

bool	Process ()
	Triggers the persistence for the current event. More...

bool	Finalize ()
	Finalizes the persistence. More...

Public Member Functions inherited from EA::Algorithm
	Algorithm (const std::string &name)

virtual bool	SetEventLoopProxy (observer_ptr< EventLoopProxy > loopProxy)
	Injector for dependency on EventLoopProxy. More...

virtual IterateRequest	Iterate ()
	Request for another iteration of the event loop. More...

observer_ptr< EventLoopProxy >	GetEventLoopProxy ()
	Accessor for the event loop proxy. More...

Public Member Functions inherited from EA::Filter
	Filter ()
	Constructor. More...

FilterResult	GetFilterResult ()
	Get the result for the filter. More...

FilterLogic	GetFilterLogic ()
	Get the current filter logic. More...

void	SetFilterStatus (FilterStatus status)
	Toggles on and off filtering. More...

FilterStatus	GetFilterStatus ()
	The filter status. More...

void	SetFilterLogic (FilterLogic filterLogic)
	Sets the filter return value logic. More...

Public Member Functions inherited from EA::Info
	Info (const std::string &name)
	Constructor. More...

virtual	~Info ()
	Destructor. More...

virtual const std::string	GetType () const

virtual const std::string	GetName () const
	The type (i.e. class) of the object. More...

virtual const std::string	GetVersion () const
	The name of the object. More...

Public Member Functions inherited from EA::Configurable
	Configurable ()
	Constructor. More...

template<typename T >
bool	SetParameter (const std::string &name, const T &value)
	Set the value of a parameter. More...

bool	SetParameter (const std::string &name, const char *value)
	Set the value of a string parameter using a string literal. More...

std::vector< std::string >	GetParameters ()
	Get the names of the parameters. More...

Public Member Functions inherited from EA::DataStoreUser
	DataStoreUser ()

virtual	~DataStoreUser ()
	Destructor. More...

virtual bool	SetDataStoreManager (observer_ptr< DataStoreManager > dsManager)
	Injector for dependency on DataStoreManager. More...

observer_ptr< DataStoreManager >	GetDataStoreManager ()
	Getter for the Data store manager. More...

Public Member Functions inherited from EA::ObjectProducer
	ObjectProducer ()
	Constructor. More...

virtual	~ObjectProducer ()
	Destructor. More...

template<typename C >
void	DeclareProducedObject (std::string name, ObjectCategory category, C aliases, std::string store)
	Declare a produced objects. More...

const ProducedObjects &	GetProducedObjects () const
	Getter method for produced objects. More...

bool	SetDisabled (bool disabled=true)
	Disables/enables the producer. More...

virtual std::vector< std::string >	FreeObjects (const std::vector< std::string > &objs, Memory::Status memStatus)
	Free the memory for given objects. More...

template<>
void	DeclareProducedObject (std::string name, ObjectCategory category, const char *alias, std::string store)

Public Member Functions inherited from EA::ObjectConsumer
	ObjectConsumer ()
	Constructor. More...

void	DeclareConsumedObject (std::string name, ObjectCategory category, std::string store, bool optional=false)
	Declare a consumed objects. More...

void	DeclareAlternative (const std::string &name, ObjectCategory category, std::string store, const std::string &alternativeName, ObjectCategory alternativeCategory, std::string alternativeStore)
	Declares two already declared objects as alternatives. More...

const ConsumedObjects &	GetConsumedObjects () const
	Getter method for consumed objects. More...

Protected Attributes
std::string	_persistenceName

std::string	_output

observer_ptr< PersistenceServiceManager >	_persistenceManager

std::unique_ptr< PersistenceService >	_persistenceServ

Additional Inherited Members
Public Types inherited from EA::Algorithm
enum	IterateRequest { IterateRequest::YES, IterateRequest::NO, IterateRequest::WHATEVER, IterateRequest::ERROR }

Public Types inherited from EA::ObjectProducer
using	ProducedObjects = std::vector< ProducedObject >
	Type for container of produced objects. More...

Public Types inherited from EA::ObjectConsumer
using	ConsumedObjects = std::vector< ConsumedObject >
	Type for container of produced objects. More...

Protected Member Functions inherited from EA::Algorithm
	Algorithm (const std::shared_ptr< Filter::Representation > &filterRepr, const std::shared_ptr< Info::Representation > &infoRepr, const std::shared_ptr< Configurable::Representation > &confRepr, const std::shared_ptr< DataStoreUser::Representation > &dsuRepr, const std::shared_ptr< ObjectProducer::Representation > &opRepr, const std::shared_ptr< ObjectConsumer::Representation > &ocRepr, const std::shared_ptr< Algorithm::Representation > &algoRepr)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::Filter
void	SetFilterResult (FilterResult result)
	Sets the result. More...

	Filter (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::Info
	Info (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::Configurable
template<typename T >
bool	DefineParameter (const std::string &name, T &variable)
	Set a parameter. More...

	Configurable (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::DataStoreUser
	DataStoreUser (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::ObjectProducer
	ObjectProducer (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::ObjectConsumer
	ObjectConsumer (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Detailed Description

An algorithm that saves data objects.

This algorithm allows to execute the tasks of a #PersistenceService during the execution of the algorithm sequence, rather than at the end as it is usually done by persistence services. It allows for saving event objects as they are at the moment when the algorithm is executed. The main usage of this class is for saving only those events surviving some given selection criteria: it is sufficient to insert in the sequence the cut algorithms followed by the persistence algorithm; for example:

EventLoop
  Sequence seq
     Algo CutAlgo1 cut1
     Algo CutAlgo2 cut2
     Algo PersistenceAlgo pers
  EndSequence

Only the data objects of the events surviving cut1 and cut2 will be saved in the output tree.

The PersistenceAlgo is configured by creating and configuring a #PersistenceService, and then assigning it to the algorithm. The same persistence service can be assigned to different instances of PersistenceAlgo, for easily performing the same type of persistence operation at different points in the algorithm sequence. Each PersistenceAlgo must be configured with a different output name, to avoid clashes. For example, suppose to have a persistence service that writes output data on a file:

Persistence MyPersistence myPersistence outputFile
Book globObj global globStore
Book evObj   event  evStore
EventLoop
  Sequence seq1
    Algo CutAlgo1 cut1
    Algo CutAlgo2 cut2
    Algo PersistenceAlgo pers1
      Set persistence myPersistence
      Set output file1
    Algo CutAlgo3 cut3
    Algo PersistenceAlgo pers2
      Set persistence myPersistence
      Set output file2
  EndSequence

The output file file1 will contain the object evObj for each event surviving the cuts cut1 and cut2, while in file2 there will be the same objects for events also surviving cut3. In both files the global object globObj will be present. Please note that global objects are always written at the end of the event loop, so globObj will be the same in file1 and file2. This also means that if there is another loop then the eventual modifications it makes to the global objects will not be reflected in the persistent objects; in other words, the global objects are saved as they are at the end of the event loop to which the PersistenceAlgo belongs.

Constructor & Destructor Documentation

◆ PersistenceAlgo()

EA::PersistenceAlgo::PersistenceAlgo ( const std::string & name )

Member Function Documentation

◆ Finalize()

bool EA::PersistenceAlgo::Finalize ( )

virtual

Finalizes the persistence.

Writes global objects and then disconnects the persistence. Note that since this method is called at the end of the event loop the persistent global objects will be unaffected by any eventual modification made by eventual other event loops.

Returns: true if the persistence is correctly finalized and disconnected from output.

Reimplemented from EA::Algorithm.

◆ Initialize()

bool EA::PersistenceAlgo::Initialize ( )

virtual

Connects and initializes the persistence service.

Returns: true if the persistence has been connected and initialized properly.

Reimplemented from EA::Algorithm.

◆ Process()

bool EA::PersistenceAlgo::Process ( )

virtual

Triggers the persistence for the current event.

Returns: true if the persistence has been correctly executed.

Reimplemented from EA::Algorithm.

◆ SetPersistenceServiceManager()

bool EA::PersistenceAlgo::SetPersistenceServiceManager ( PersistenceServiceManager & persManager )

Method to set the persistence manager.

The PersistenceAlgo needs to retrieve the PersistenceService object whose name correspond to the one set for the persistence parameter. The Algorithm interface however does not allow for access to the persistence service manager. This method allows for injecting a reference to the persistence service manager into PersistenceAlgo.

Parameters

persManager Reference to the PersistenceServiceManager.

Returns: true if the manager reference has been correctly set.

Member Data Documentation

◆ _output

std::string EA::PersistenceAlgo::_output

protected

◆ _persistenceManager

observer_ptr<PersistenceServiceManager> EA::PersistenceAlgo::_persistenceManager

protected

◆ _persistenceName

std::string EA::PersistenceAlgo::_persistenceName

protected

◆ _persistenceServ

std::unique_ptr<PersistenceService> EA::PersistenceAlgo::_persistenceServ

protected

The documentation for this class was generated from the following files:

/builds/mori/EventAnalysis/include/algorithm/PersistenceAlgo.h
/builds/mori/EventAnalysis/src/algorithm/PersistenceAlgo.cpp
