EA::Configurable Class Reference

Interface for a configurable class. More...

#include <Configurable.h>

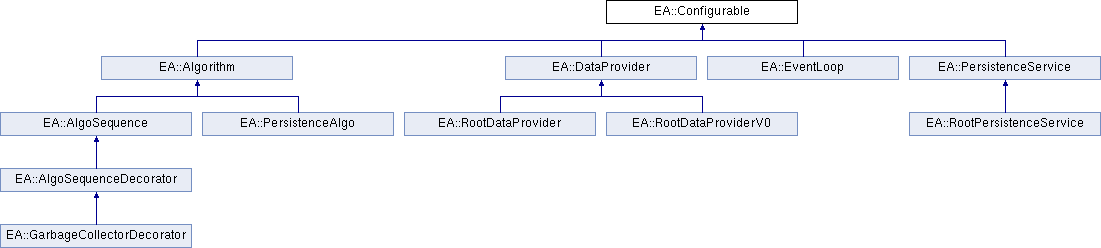

Inheritance diagram for EA::Configurable:

Classes
class	Representation

Public Member Functions
	Configurable ()
	Constructor. More...
template<typename T >
bool	SetParameter (const std::string &name, const T &value)
	Set the value of a parameter and then calls a callback function. More...
bool	SetParameter (const std::string &name, const char *value)
	Set the value of a string parameter using a string literal and then calls an eventual callback function. More...
std::vector< std::string >	GetParameters ()
	Get the names of the parameters. More...
bool	AddSubConfigurable (EA::observer_ptr< Configurable > subConfigurable)
	Adds a sub-configurable. More...

Protected Member Functions
template<typename T >
bool	DefineParameter (const std::string &name, T &variable, std::function< bool()> callBack={})
	Set a parameter. More...
	Configurable (const std::shared_ptr< Representation > &impl)
std::shared_ptr< Representation > &	GetRepresentation ()

Private Attributes
std::shared_ptr< Representation >	_repr

Detailed Description

Interface for a configurable class.

This class provides the interface for defining a map between names (strings) and actual variables, and for setting values of the variables via their names. Children classes can expose their internal variables with DefineParameter, and users can set these values by calling SetParameter.

To ease the composition of configurable objects a set of sub-configurables can be defined: their parameters can be set as if they were parameter of the configurable object containing them.

Constructor & Destructor Documentation

Configurable() [1/2]

EA::Configurable::Configurable

(

)

Constructor.

Configurable() [2/2]

EA::Configurable::Configurable ( const std::shared_ptr< Representation > &  impl )

inlineprotected

Member Function Documentation

AddSubConfigurable()

bool EA::Configurable::AddSubConfigurable

(

EA::observer_ptr< Configurable >

subConfigurable

)

Adds a sub-configurable.

A sub-configurable is a configurable object to which the settings of parameters not belonging to this configurable will be forwarded. Several sub-configurables can be added to a configurable.

Parameters

subConfigurable

Pointer to the sub-configurable.

Returns

true if the sub-configurable has been successfully added.

DefineParameter()

template<typename T >

bool EA::Configurable::DefineParameter ( const std::string &  name, T &  variable, std::function< bool()>  callBack = {}  )

protected

Set a parameter.

This method associates a name with a variable, making it possible to set its value by means of SetValue. If a callback function is specified then it will be called by SetParameter after setting the parameter.

Parameters

name	The name of the parameter.
variable	The variable that will store the parameter value.
callBack	The callback function.

Returns

true if the parameter has bee correctly defined.

GetParameters()

std::vector< std::string > EA::Configurable::GetParameters

(

)

Get the names of the parameters.

This method returns a list of the names of the parameters of the Configurable object and all its sub-configurables.

Returns

A vector containing the names of the parameters.

See also

AddSubConfigurable

GetRepresentation()

std::shared_ptr<Representation>& EA::Configurable::GetRepresentation ( )

inlineprotected

SetParameter() [1/2]

template<typename T >

bool EA::Configurable::SetParameter	(	const std::string &	name,
		const T &	value
	)

Set the value of a parameter and then calls a callback function.

The method sets the value for a parameter previously defined by DefineParameter and then calls an eventual callback function.

Parameters

name	The name of the parameter.
value	The new value for the parameter.

Returns

true if the new value has been correctly set and the callback function returns true, false otherwise.

SetParameter() [2/2]

bool EA::Configurable::SetParameter	(	const std::string &	name,
		const char *	value
	)

Set the value of a string parameter using a string literal and then calls an eventual callback function.

Overload of template SetValue for setting the value of an std::string parameter using a const char* string literal (needed to circumvent troubles with template substitution and type mismatch) and then calling a callback function.

Parameters

name	The name of the parameter.
value	The new value for the parameter.

Returns

true if the new value has been correctly set and the callback function returns true, false otherwise.

Member Data Documentation

_repr

std::shared_ptr<Representation> EA::Configurable::_repr

private

---

The documentation for this class was generated from the following files:

• /builds/mori/EventAnalysis/include/core/Configurable.h
• /builds/mori/EventAnalysis/src/core/Configurable.cpp
