A class describing a vector in 3D space. More...

#include <common/Vec3D.h>

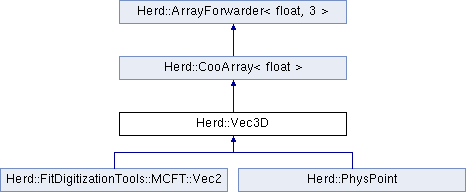

Inheritance diagram for Herd::Vec3D:

Classes
class	UndefinedAngle
	Exception class for invalid operations on a undefined angle. More...

Public Member Functions
constexpr	Vec3D ()
	Default constructor. More...

constexpr	Vec3D (float x, float y, float z)
	Constructor. More...

constexpr	Vec3D (std::array< float, 3 > arr)
	Constructor. More...

constexpr	Vec3D (RefFrame::Direction direction)
	Constructs a 3D vector from a given direction. More...

void	Dump () const
	Dumps the vector components. More...

float	Mag () const
	Compute the vector magnitude. More...

Vec3D	UnitVector () const
	Return this vector, but normalized to unit length. More...

constexpr Vec3D	CrossProduct (const Vec3D &rhs) const
	Compute the cross product of two vectors. More...

float	PolarAngle () const
	Compute the polar angle. More...

float	AzimuthAngle () const
	Compute the azimuth angle. More...

Vec3D &	operator+= (Vec3D const &right)
	Add a vector to this one. More...

Vec3D &	operator+= (Vec3D &&right)

Vec3D	operator- (Vec3D const &right) const
	Subtract two vectors. More...

Vec3D &	operator-= (Vec3D const &right)
	Subtract a vector from this one. More...

Vec3D &	operator-= (Vec3D &&right)

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>
Vec3D &	operator*= (T const &right)
	Multiply a vector by a number. More...

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>
Vec3D &	operator*= (T &&right)

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>
Vec3D &	operator/= (T const &right)
	Divide a vector by a number. More...

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>
Vec3D &	operator/= (T &&right)

bool	operator== (const Vec3D &right) const
	Comparison operator. More...

Public Member Functions inherited from Herd::CooArray< float >
constexpr	CooArray ()=default
	Default constructor. More...

constexpr	CooArray (const CooArray< float > &c)
	Copy constructor. More...

constexpr	CooArray (U &&v1, V &&v2, Z &&v3)
	Initializer list constructor. More...

constexpr	CooArray (const std::array< float, 3 > &values)
	Array constructors. More...

constexpr	CooArray (std::array< float, 3 > &&values)

constexpr CooArray< float > &	operator= (const CooArray< float > &lhs)
	Assignment operator. More...

constexpr float &	operator[] (const RefFrame::Coo &coo)
	Accesses an element without validity check on the element index. More...

constexpr const float &	operator[] (const RefFrame::Coo &coo) const
	Accesses an element without validity check on the element index. More...

constexpr float &	at (const RefFrame::Coo &coo)
	Accesses an element with validity check on the element index. More...

constexpr const float &	at (const RefFrame::Coo &coo) const
	Accesses an element with validity check on the element index. More...

Public Member Functions inherited from Herd::ArrayForwarder< float, 3 >
constexpr	ArrayForwarder ()=default

constexpr	ArrayForwarder (std::array< _Tp, _Nm > arr)

void	fill (const value_type &__u)

void	swap (ArrayForwarder &__other) noexcept(noexcept(std::swap(std::declval< _Tp & >(), std::declval< _Tp & >())))

_GLIBCXX17_CONSTEXPR iterator	begin () noexcept

_GLIBCXX17_CONSTEXPR const_iterator	begin () const noexcept

_GLIBCXX17_CONSTEXPR iterator	end () noexcept

_GLIBCXX17_CONSTEXPR const_iterator	end () const noexcept

_GLIBCXX17_CONSTEXPR reverse_iterator	rbegin () noexcept

_GLIBCXX17_CONSTEXPR const_reverse_iterator	rbegin () const noexcept

_GLIBCXX17_CONSTEXPR reverse_iterator	rend () noexcept

_GLIBCXX17_CONSTEXPR const_reverse_iterator	rend () const noexcept

_GLIBCXX17_CONSTEXPR const_iterator	cbegin () const noexcept

_GLIBCXX17_CONSTEXPR const_iterator	cend () const noexcept

_GLIBCXX17_CONSTEXPR const_reverse_iterator	crbegin () const noexcept

_GLIBCXX17_CONSTEXPR const_reverse_iterator	crend () const noexcept

constexpr size_type	size () const noexcept

constexpr size_type	max_size () const noexcept

constexpr bool	empty () const noexcept

_GLIBCXX17_CONSTEXPR reference	operator[] (size_type __n) noexcept

constexpr const_reference	operator[] (size_type __n) const noexcept

_GLIBCXX17_CONSTEXPR reference	at (size_type __n)

constexpr const_reference	at (size_type __n) const

_GLIBCXX17_CONSTEXPR reference	front () noexcept

constexpr const_reference	front () const noexcept

_GLIBCXX17_CONSTEXPR reference	back () noexcept

constexpr const_reference	back () const noexcept

_GLIBCXX17_CONSTEXPR pointer	data () noexcept

_GLIBCXX17_CONSTEXPR const_pointer	data () const noexcept

Friends
std::ostream &	operator<< (std::ostream &os, const Vec3D &vec)
	Write coordinates to stream. More...

Additional Inherited Members
Public Types inherited from Herd::CooArray< float >
using	BaseType = ArrayForwarder< float, 3 >

Public Types inherited from Herd::ArrayForwarder< float, 3 >
typedef _Tp	value_type

typedef value_type *	pointer

typedef value_type &	reference

typedef value_type *	iterator

typedef std::size_t	size_type

typedef std::ptrdiff_t	difference_type

typedef std::reverse_iterator< iterator >	reverse_iterator

typedef std::reverse_iterator< const_iterator >	const_reverse_iterator

Public Attributes inherited from Herd::ArrayForwarder< float, 3 >
const typedef value_type *	const_pointer

const typedef value_type &	const_reference

const typedef value_type *	const_iterator

Detailed Description

A class describing a vector in 3D space.

The Vec3D class provides vector functionality in 3D space. It also provides some utility operations common on vectors: such as multiplication by a scalar and addition.

Constructor & Destructor Documentation

◆ Vec3D() [1/4]

constexpr Herd::Vec3D::Vec3D ( )

inlineconstexpr

Default constructor.

Creates a vector with undefined coordinates.

◆ Vec3D() [2/4]

constexpr Herd::Vec3D::Vec3D	(	float	x,
		float	y,
		float	z
	)

inlineconstexpr

Constructor.

Creates a vector from three coordinates.

◆ Vec3D() [3/4]

constexpr Herd::Vec3D::Vec3D ( std::array< float, 3 > arr )

inlineconstexpr

Constructor.

Creates a vector from a std::array.

◆ Vec3D() [4/4]

constexpr Herd::Vec3D::Vec3D ( RefFrame::Direction direction )

inlineconstexpr

Constructs a 3D vector from a given direction.

Parameters

direction The given direction.

Member Function Documentation

◆ AzimuthAngle()

float Herd::Vec3D::AzimuthAngle ( ) const

inline

Compute the azimuth angle.

Returns: The vector azimuth angle.

◆ CrossProduct()

constexpr Vec3D Herd::Vec3D::CrossProduct ( const Vec3D & rhs ) const

inlineconstexpr

Compute the cross product of two vectors.

Computes the cross product between this vector (lhs) and the argument vector (rhs): lhs x rhs.

Parameters

rhs	The vector to compute the cross product with.

Returns: the cross product between this vector and rhs.

◆ Dump()

void Herd::Vec3D::Dump ( ) const

inline

Dumps the vector components.

◆ Mag()

float Herd::Vec3D::Mag ( ) const

inline

Compute the vector magnitude.

Returns: The vector magnitude.

◆ operator*=() [1/2]

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>

Vec3D& Herd::Vec3D::operator*= ( T && right )

inline

◆ operator*=() [2/2]

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>

Vec3D& Herd::Vec3D::operator*= ( T const & right )

inline

Multiply a vector by a number.

Returns: The resulting vector.

◆ operator+=() [1/2]

Vec3D& Herd::Vec3D::operator+= ( Vec3D && right )

inline

◆ operator+=() [2/2]

Vec3D& Herd::Vec3D::operator+= ( Vec3D const & right )

inline

Add a vector to this one.

Returns: The resulting vector.

◆ operator-()

Vec3D Herd::Vec3D::operator- ( Vec3D const & right ) const

inline

Subtract two vectors.

Returns: The resulting vector.

◆ operator-=() [1/2]

Vec3D& Herd::Vec3D::operator-= ( Vec3D && right )

inline

◆ operator-=() [2/2]

Vec3D& Herd::Vec3D::operator-= ( Vec3D const & right )

inline

Subtract a vector from this one.

Returns: The resulting vector.

◆ operator/=() [1/2]

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>

Vec3D& Herd::Vec3D::operator/= ( T && right )

inline

◆ operator/=() [2/2]

template<typename T , typename std::enable_if< std::is_arithmetic< T >::value >::type * = nullptr>

Vec3D& Herd::Vec3D::operator/= ( T const & right )

inline

Divide a vector by a number.

Returns: The resulting vector.

◆ operator==()

bool Herd::Vec3D::operator== ( const Vec3D & right ) const

inline

Comparison operator.

Parameters

right The vector to compare with.

Returns: true if the coordinates of the two vectors are equal.

◆ PolarAngle()

float Herd::Vec3D::PolarAngle ( ) const

inline

Compute the polar angle.

Returns: The vector polar angle.

◆ UnitVector()

Vec3D Herd::Vec3D::UnitVector ( ) const

inline

Return this vector, but normalized to unit length.

Returns: this vector, but normalized to unit length

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Vec3D &	vec
	)

friend

Write coordinates to stream.

The documentation for this class was generated from the following file:

/builds/herd/HerdSoftware/include/herd/analysis/common/Vec3D.h
