Base algorithm for digitizers of the Monte Carlo hits of silicon detector implementing the effect of charge dritf and diffusion in the silicon. More...

#include <algorithms/digitization/SiliconDetectorDriftDiffusionAlgo.h>

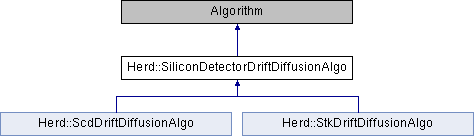

Inheritance diagram for Herd::SiliconDetectorDriftDiffusionAlgo:

Public Member Functions
	SiliconDetectorDriftDiffusionAlgo (const std::string &name)
	Constructor. More...

bool	Initialize () override
	Initialization of the algorithm. More...

bool	Process () override
	Process a single event. More...

std::vector< std::string >	FreeObjects (const std::vector< std::string > &objs, Memory::Status memStatus) override
	Free the memory of unneeded objects. More...

Protected Attributes
float	m_pitch

std::string	m_detName
	Name of the detector, e.g "stk". More...

float	m_minStepSize

std::string	m_diffusionType

float	m_posEffDiffCoeff

float	m_negEffDiffCoeff

float	m_biasVoltage

float	m_intrinsicVoltage

Private Types
enum	DiffusionType { DiffusionType::Gaussian, DiffusionType::GaussianNonLinear }

Private Member Functions
void	GenerateHits (const SiliconDetectorParticleHitsColl &particleHitsColl, const SiliconDetectorHitsColl &hitsColl, SiliconDetectorHitsColl &digHitsColl)
	Generate the diffused hits. More...

SiliconDetectorGeoParams	CreateGeoParams (const SiliconDetectorGeoParams &origGeoParams)
	Creates the geometry parameter objects for the digitized detector. More...

std::vector< Point >	PartitionTrajectory (const ParticleHit &hit)
	Splits the trajectory of a particle hit into N sub-steps, according to the step-size specified in the algo. More...

void	AccumulateSteps (std::vector< Hit > &layerHits, const SiliconDetectorGeoParams &geoParams, unsigned int firstStrip, unsigned int lastStrip, const SiliconDetectorDigitizationTools::SDChargePacket &packet, float edep)

std::unique_ptr< SiliconDetectorDigitizationTools::SDChargePacket >	CreatePacket (Point position, DiffusionType diffType, const SiliconDetectorGeoParams &geoParams)

Private Attributes
DiffusionType	m_diffType = DiffusionType::GaussianNonLinear

SiliconDetectorHitsColl	m_siliconDetectorDigHitsColl

observer_ptr< SiliconDetectorGeoParamsColl >	m_origSiliconDetectorGeoParamsColl

std::shared_ptr< SiliconDetectorGeoParamsColl >	m_digSiliconDetectorGeoParamsColl

StorePtr	m_evStore

StorePtr	m_globStore

Detailed Description

Base algorithm for digitizers of the Monte Carlo hits of silicon detector implementing the effect of charge dritf and diffusion in the silicon.

This algorithm assigns the energy released by single particles traversing a wafer of the silicon detector to the strips after propagating and diffusing charge deposits along the particle trajectory. Different diffusion methods should be implementable, but for now a simple gaussian model is used.

NOTE: this algorithm cannot be used directly in analysis job; use #StkDriftDiffusionAlgo for STK and #ScdDriftDiffusionAlgo for SCD.

Member Enumeration Documentation

◆ DiffusionType

enum Herd::SiliconDetectorDriftDiffusionAlgo::DiffusionType

strongprivate

Enumerator
Gaussian
GaussianNonLinear

Constructor & Destructor Documentation

◆ SiliconDetectorDriftDiffusionAlgo()

Herd::SiliconDetectorDriftDiffusionAlgo::SiliconDetectorDriftDiffusionAlgo ( const std::string & name )

Constructor.

Parameters

name	The name of the algorithm.

Member Function Documentation

◆ AccumulateSteps()

void Herd::SiliconDetectorDriftDiffusionAlgo::AccumulateSteps	(	std::vector< Hit > &	layerHits,
		const SiliconDetectorGeoParams &	geoParams,
		unsigned int	firstStrip,
		unsigned int	lastStrip,
		const SiliconDetectorDigitizationTools::SDChargePacket &	packet,
		float	edep
	)

private

◆ CreateGeoParams()

SiliconDetectorGeoParams Herd::SiliconDetectorDriftDiffusionAlgo::CreateGeoParams ( const SiliconDetectorGeoParams & origGeoParams )

private

Creates the geometry parameter objects for the digitized detector.

Starting from the original geometry parameters this method computes the digitized parameters using the digitization parameters stored in private members.

Parameters

origGeoParams the original geometry parameters.

Returns: The geometry parameters of the digitized detectors.

Exceptions

std::runtime_error if the relative position of the first strip on the wafer is less than 0 (i.e. strip outside the wafer).

◆ CreatePacket()

std::unique_ptr< SiliconDetectorDigitizationTools::SDChargePacket > Herd::SiliconDetectorDriftDiffusionAlgo::CreatePacket	(	Point	position,
		DiffusionType	diffType,
		const SiliconDetectorGeoParams &	geoParams
	)

private

◆ FreeObjects()

std::vector< std::string > Herd::SiliconDetectorDriftDiffusionAlgo::FreeObjects	(	const std::vector< std::string > &	objs,
		Memory::Status	memStatus
	)

override

Free the memory of unneeded objects.

Currently this method frees the memory of the digitized hits if memStatus is EXHAUSTED.

Parameters

objs	The list of objects to be freed.
memStatus	The current memory occupation status.

Returns: a list of freed objects.

◆ GenerateHits()

void Herd::SiliconDetectorDriftDiffusionAlgo::GenerateHits	(	const SiliconDetectorParticleHitsColl &	particleHitsColl,
		const SiliconDetectorHitsColl &	hitsColl,
		SiliconDetectorHitsColl &	digHitsColl
	)

private

Generate the diffused hits.

This function generates hits on the silicon detector after charge diffusion. It fills the collection passed as the digHitsColl argument with the digitized hits.

Parameters

digGeoParamsColl	The geometry parameters of the digitized detector.
particleHitsColl	The collection of particle hits.
hitsColl	The collection of hits.
digHitsColl	The collection of digitized hits.

◆ Initialize()

bool Herd::SiliconDetectorDriftDiffusionAlgo::Initialize ( )

override

Initialization of the algorithm.

Returns: true if the initialization procedure is successful.

◆ PartitionTrajectory()

std::vector< Point > Herd::SiliconDetectorDriftDiffusionAlgo::PartitionTrajectory ( const ParticleHit & hit )

private

Splits the trajectory of a particle hit into N sub-steps, according to the step-size specified in the algo.

Parameters

hit	the particle hit.

Returns: A vector with the mid-points of all the sub-steps.

◆ Process()

bool Herd::SiliconDetectorDriftDiffusionAlgo::Process ( )

override

Process a single event.

Returns: If event processing is successful.

Member Data Documentation

◆ m_biasVoltage

float Herd::SiliconDetectorDriftDiffusionAlgo::m_biasVoltage

protected

◆ m_detName

std::string Herd::SiliconDetectorDriftDiffusionAlgo::m_detName

SiliconDetectorHitsColl Herd::SiliconDetectorDriftDiffusionAlgo::m_siliconDetectorDigHitsColl

private

The documentation for this class was generated from the following files:

/builds/herd/HerdSoftware/include/analysis/algorithms/digitization/SiliconDetectorDriftDiffusionAlgo.h
/builds/herd/HerdSoftware/src/analysis/algorithms/digitization/SiliconDetectorDriftDiffusionAlgo.cpp
