Herd::SiliconDetectorBondingDigitizerAlgo Class Reference

Base algorithm for bonding digitizers of the Monte Carlo hits of silicon detectors. More...

#include <algorithms/digitization/SiliconDetectorBondingDigitizerAlgo.h>

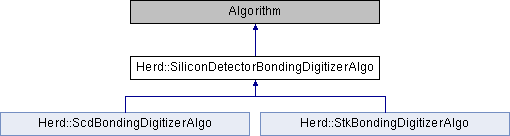

Inheritance diagram for Herd::SiliconDetectorBondingDigitizerAlgo:

Public Member Functions
	SiliconDetectorBondingDigitizerAlgo (const std::string &name)
	Constructor. More...
bool	Initialize () override
	Initialization of the algorithm. More...
bool	Process () override
	Process a single event. More...
std::vector< std::string >	FreeObjects (const std::vector< std::string > &objs, Memory::Status memStatus) override
	Free the memory of unneeded objects. More...

Protected Attributes
int	_nWafersPerLadderTop
	Number of wafers in each ladder, i.e. wafers to be bonded together, on top face. More...
int	_nWafersPerLadderSideEven
int	_nWafersPerLadderSideOdd
std::string	_detName
	Name of the detector, e.g "stk". More...

Private Member Functions
SiliconDetectorHitsColl	_Bond (const SiliconDetectorHitsColl &hitsColl)
	Bonds the silicon strips. More...
SiliconDetectorGeoParams	_CreateGeoParams (const SiliconDetectorGeoParams &origGeoParams, int nWafersPerLadder)
	Creates the geometry parameter objects for the bonded detector. More...
int	_NWafersPerLadder (RefFrame::Side side, int iLayer)

Private Attributes
SiliconDetectorHitsColl	_bondedHitsColl
std::shared_ptr< SiliconDetectorGeoParamsColl >	_bondedGeoParamsColl
observer_ptr< SiliconDetectorGeoParamsColl >	_origGeoParamsColl
StorePtr	_evStore
StorePtr	_globStore

Detailed Description

Base algorithm for bonding digitizers of the Monte Carlo hits of silicon detectors.

This algorithm sums up the energy releases in the strips in neighboring wafers that are connected by bonding wires to produce the energy release in each strip of the ladder.

NOTE: this algorithm cannot be used directly in analysis job; use #StkBondingDigitizerAlgo for STK and #ScdBondingDigitizerAlgo for SCD.

Constructor & Destructor Documentation

SiliconDetectorBondingDigitizerAlgo()

Herd::SiliconDetectorBondingDigitizerAlgo::SiliconDetectorBondingDigitizerAlgo

(

const std::string &

name

)

Constructor.

Parameters

name	The name of the algorithm.

Member Function Documentation

_Bond()

SiliconDetectorHitsColl Herd::SiliconDetectorBondingDigitizerAlgo::_Bond ( const SiliconDetectorHitsColl &  hitsColl )

private

Bonds the silicon strips.

This function computes the hits on the bonded strips. It fills the collection passed as the HitsColl argument with the digitized hits.

Parameters

hitsColl

The collection of hits.

Returns

The collection of bonded hits.

_CreateGeoParams()

SiliconDetectorGeoParams Herd::SiliconDetectorBondingDigitizerAlgo::_CreateGeoParams ( const SiliconDetectorGeoParams &  origGeoParams, int  nWafersPerLadder  )

private

Creates the geometry parameter objects for the bonded detector.

Starting from the original geometry parameters this method computes the new geoparams objects accounting for bonded wafers

Parameters

origGeoParams	the original geometry parameters.
nWafersPerLadder	the number of wafers in the bonded ladder.

Returns

The geometry parameters of the bonded detectors.

_NWafersPerLadder()

int Herd::SiliconDetectorBondingDigitizerAlgo::_NWafersPerLadder ( RefFrame::Side  side, int  iLayer  )

inlineprivate

FreeObjects()

std::vector< std::string > Herd::SiliconDetectorBondingDigitizerAlgo::FreeObjects ( const std::vector< std::string > &  objs, Memory::Status  memStatus  )

override

Free the memory of unneeded objects.

Currently this method frees the memory of the digitized hits if memStatus is EXHAUSTED.

Parameters

objs	The list of objects to be freed.
memStatus	The current memory occupation status.

Returns

a list of freed objects.

Initialize()

bool Herd::SiliconDetectorBondingDigitizerAlgo::Initialize ( )

override

Initialization of the algorithm.

Returns

true if the initialization procedure is successful.

Process()

bool Herd::SiliconDetectorBondingDigitizerAlgo::Process ( )

override

Process a single event.

Returns

If event processing is successful.

Member Data Documentation

_bondedGeoParamsColl

std::shared_ptr<SiliconDetectorGeoParamsColl> Herd::SiliconDetectorBondingDigitizerAlgo::_bondedGeoParamsColl

private

_bondedHitsColl

SiliconDetectorHitsColl Herd::SiliconDetectorBondingDigitizerAlgo::_bondedHitsColl

private

_detName

std::string Herd::SiliconDetectorBondingDigitizerAlgo::_detName

protected

Name of the detector, e.g "stk".

_evStore

StorePtr Herd::SiliconDetectorBondingDigitizerAlgo::_evStore

private

_globStore

StorePtr Herd::SiliconDetectorBondingDigitizerAlgo::_globStore

private

_nWafersPerLadderSideEven

int Herd::SiliconDetectorBondingDigitizerAlgo::_nWafersPerLadderSideEven

protected

Number of wafers in each ladder, i.e. wafers to be bonded together, on side faces for even layers

_nWafersPerLadderSideOdd

int Herd::SiliconDetectorBondingDigitizerAlgo::_nWafersPerLadderSideOdd

protected

Number of wafers in each ladder, i.e. wafers to be bonded together, on side faces for odd layers

_nWafersPerLadderTop

int Herd::SiliconDetectorBondingDigitizerAlgo::_nWafersPerLadderTop

protected

Number of wafers in each ladder, i.e. wafers to be bonded together, on top face.

_origGeoParamsColl

observer_ptr<SiliconDetectorGeoParamsColl> Herd::SiliconDetectorBondingDigitizerAlgo::_origGeoParamsColl

private

---

The documentation for this class was generated from the following files:

• /builds/herd/HerdSoftware/include/analysis/algorithms/digitization/SiliconDetectorBondingDigitizerAlgo.h
• /builds/herd/HerdSoftware/src/analysis/algorithms/digitization/SiliconDetectorBondingDigitizerAlgo.cpp
