Herd::SidesArray< ContainedClass > Class Template Reference

An array that accepts side as subscripts. More...

#include <common/SidesArray.h>

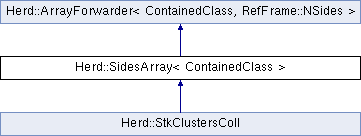

Inheritance diagram for Herd::SidesArray< ContainedClass >:

Public Types
using	BaseType = ArrayForwarder< ContainedClass, RefFrame::NSides >
Public Types inherited from Herd::ArrayForwarder< ContainedClass, RefFrame::NSides >
typedef ContainedClass	value_type
typedef value_type *	pointer
typedef const value_type *	const_pointer
typedef value_type &	reference
typedef const value_type &	const_reference
typedef value_type *	iterator
typedef const value_type *	const_iterator
typedef std::size_t	size_type
typedef std::ptrdiff_t	difference_type
typedef std::reverse_iterator< iterator >	reverse_iterator
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator

Public Member Functions
ContainedClass &	operator[] (const RefFrame::Side &side)
	Accesses an element without validity check on the element index. More...
const ContainedClass &	operator[] (const RefFrame::Side &side) const
	Accesses an element without validity check on the element index. More...
ContainedClass &	at (const RefFrame::Side &side)
	Accesses an element with validity check on the element index. More...
const ContainedClass &	at (const RefFrame::Side &side) const
	Accesses an element with validity check on the element index. More...
Public Member Functions inherited from Herd::ArrayForwarder< ContainedClass, RefFrame::NSides >
	ArrayForwarder ()
	ArrayForwarder (std::array< ContainedClass, _Nm > arr)
void	fill (const value_type &__u)
void	swap (ArrayForwarder &__other) noexcept(noexcept(std::swap(std::declval< ContainedClass & >(), std::declval< ContainedClass & >())))
_GLIBCXX17_CONSTEXPR iterator	begin () noexcept
_GLIBCXX17_CONSTEXPR const_iterator	begin () const noexcept
_GLIBCXX17_CONSTEXPR iterator	end () noexcept
_GLIBCXX17_CONSTEXPR const_iterator	end () const noexcept
_GLIBCXX17_CONSTEXPR reverse_iterator	rbegin () noexcept
_GLIBCXX17_CONSTEXPR const_reverse_iterator	rbegin () const noexcept
_GLIBCXX17_CONSTEXPR reverse_iterator	rend () noexcept
_GLIBCXX17_CONSTEXPR const_reverse_iterator	rend () const noexcept
_GLIBCXX17_CONSTEXPR const_iterator	cbegin () const noexcept
_GLIBCXX17_CONSTEXPR const_iterator	cend () const noexcept
_GLIBCXX17_CONSTEXPR const_reverse_iterator	crbegin () const noexcept
_GLIBCXX17_CONSTEXPR const_reverse_iterator	crend () const noexcept
constexpr size_type	size () const noexcept
constexpr size_type	max_size () const noexcept
constexpr bool	empty () const noexcept
_GLIBCXX17_CONSTEXPR reference	operator[] (size_type __n) noexcept
constexpr const_reference	operator[] (size_type __n) const noexcept
_GLIBCXX17_CONSTEXPR reference	at (size_type __n)
constexpr const_reference	at (size_type __n) const
_GLIBCXX17_CONSTEXPR reference	front () noexcept
constexpr const_reference	front () const noexcept
_GLIBCXX17_CONSTEXPR reference	back () noexcept
constexpr const_reference	back () const noexcept
_GLIBCXX17_CONSTEXPR pointer	data () noexcept
_GLIBCXX17_CONSTEXPR const_pointer	data () const noexcept

Detailed Description

template<typename ContainedClass>
class Herd::SidesArray< ContainedClass >

An array that accepts side as subscripts.

A SidesArray contains elements associated to each side of the Herd detector. The elements in an SidesArray can be indexed using RefFrame::Side values. The class does not support the braced initialization lists like std::array, since it doesn't guarantee any relation between the position in the initializer list and the side value. So it is not possible to initialize Side Array as:

SidesArray<int> sa{0, 1, 2, 3, 4}; // Compiler error
sa = {4, 5, 6, 7, 8}; // Compiler error

The typical usage of a SidesArray involves the subscript operator together with a RefFrame::Side used as the subscript index. For example, suppose to have to store one integer value for each side:

SidesArray<int> array;

To set the value of the TOP element to 1 and of the Xneg element to 2:

array[RefFrame::Side::TOP] = 1;
array[RefFrame::Side::Xneg] = 2;

This brief example shows the main purpose of the SidesArray: using a RefFrame::Side to index the sides instead of integers removes a potential source of confusion, e.g.:

array[0] = 1; // Which is side 0? TOP?? Xneg???

Loops

With the help of RefFrame::Sides and of RefFrame::NSides is it also possible to loop over all the values of a SidesArray with a range-for loop, e.g.:

for (auto side : RefFrame::Sides){
  array[side] = 0;
}

or with a "classic" for loop:

for (int iSide = 0; iSide < RefFrame::NSides; ++iSide){
  array[RefFrame::Sides[iSide]] = 0;
}

Member Typedef Documentation

BaseType

template<typename ContainedClass>

using Herd::SidesArray< ContainedClass >::BaseType = ArrayForwarder<ContainedClass, RefFrame::NSides>

Member Function Documentation

at() [1/2]

template<typename ContainedClass>

ContainedClass& Herd::SidesArray< ContainedClass >::at ( const RefFrame::Side &  side )

inline

Accesses an element with validity check on the element index.

Accesses the element corresponding to the given side; if the side is NONE then a std::out_of_range exception will be thrown.

Parameters

side	The side of the desired element.

Returns

a reference to the desired element.

Exceptions

std::out_of_range

if side == RefFrame::Side::NONE.

at() [2/2]

template<typename ContainedClass>

const ContainedClass& Herd::SidesArray< ContainedClass >::at ( const RefFrame::Side &  side ) const

inline

Accesses an element with validity check on the element index.

Accesses the element corresponding to the given side; if the side is NONE then a std::out_of_range exception will be thrown.

Parameters

side	The side of the desired element.

Returns

a const reference to the desired element.

Exceptions

std::out_of_range

if side == RefFrame::Side::NONE.

operator[]() [1/2]

template<typename ContainedClass>

ContainedClass& Herd::SidesArray< ContainedClass >::operator[] ( const RefFrame::Side &  side )

inline

Accesses an element without validity check on the element index.

Accesses the element corresponding to the given side. No check is performed on the side argument, so passing NONE will result in undefined behavior.

Parameters

side	The side of the desired element.

Returns

a reference to the desired element.

operator[]() [2/2]

template<typename ContainedClass>

const ContainedClass& Herd::SidesArray< ContainedClass >::operator[] ( const RefFrame::Side &  side ) const

inline

Accesses an element without validity check on the element index.

Accesses the element corresponding to the given side. No check is performed on the side argument, so passing NONE will result in undefined behavior.

Parameters

side	The side of the desired element.

Returns

a const reference to the desired element.

---

The documentation for this class was generated from the following file:

• /builds/herd/HerdSoftware/include/analysis/common/SidesArray.h
