GGSAcceptanceCheckAction Class Reference

An action to kill primary tracks outside acceptance. More...

#include <GGSAcceptanceCheckAction.h>

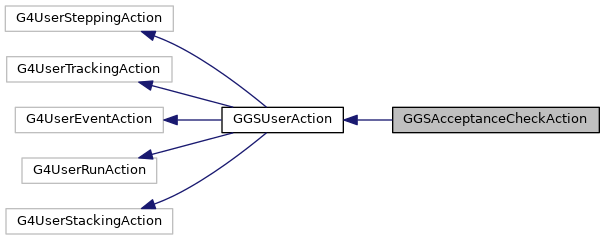

Inheritance diagram for GGSAcceptanceCheckAction:

Collaboration diagram for GGSAcceptanceCheckAction:

Public Member Functions
	GGSAcceptanceCheckAction ()
	Constructor.
	~GGSAcceptanceCheckAction ()
	Destructor.
G4ClassificationOfNewTrack	ClassifyNewTrack (const G4Track *track)
	Override of the ClassifyNewTrack method. More...
Public Member Functions inherited from GGSUserAction
	GGSUserAction ()
	Constructor. More...
virtual	~GGSUserAction ()
	Destructor.
G4ClassificationOfNewTrack	ClassifyNewTrack (const G4Track *)
	Override of the ClassifyNewTrack method. More...

Detailed Description

An action to kill primary tracks outside acceptance.

This action checks primary tracks before they are stacked. If they lie outside the acceptance defined in the IsInsideAcceptance method of the user-defined geometry then the track is classified as fKill and consequently it is not added to the stack. This means that the track will not be simulated and eventually the event will be killed by GGSRunManager if there is no other primary inside acceptance to be simulated. Re-simulation of killed events can be set with the datacard command /GGS/acceptanceCheck/reSimulateKilled.

Definition at line 27 of file GGSAcceptanceCheckAction.h.

Member Function Documentation

G4ClassificationOfNewTrack GGSAcceptanceCheckAction::ClassifyNewTrack

(

const G4Track *

track

)

Override of the ClassifyNewTrack method.

Parameters

track

The new track

Returns

fKill if the track is outside the acceptance, G4UserStackingAction::ClassifyNewTrack otherwise.

Definition at line 36 of file GGSAcceptanceCheckAction.cpp.

                                                                                          {
  if (track->GetParentID() == 0) {
    GGSDetectorConstruction *detConst =
        (GGSDetectorConstruction *)(GGSRunManager::GetRunManager()->GetUserDetectorConstruction());
    if (detConst->GetGeometry()->IsInsideAcceptance(track->GetPosition(), track->GetMomentum().unit())) {
      return fUrgent;
    } else {
      GGSPrimaryParticleInfo *userInfo =
          (GGSPrimaryParticleInfo *)(track->GetDynamicParticle()->GetPrimaryParticle()->GetUserInformation());
      if (!userInfo)
        userInfo = new GGSPrimaryParticleInfo;
      userInfo->isTrackKilled = true;
      track->GetDynamicParticle()->GetPrimaryParticle()->SetUserInformation(userInfo);
      if (G4EventManager::GetEventManager()->GetStackManager()->GetNTotalTrack() == 0) {
        GGSRunManager::GetRunManager()->KillEvent();
        if (_reSimulateKilled)
          GGSRunManager::GetRunManager()->SimulateAgainKilledEvent();
      }
      return fKill;
    }
  }
  return G4UserStackingAction::ClassifyNewTrack(track);
}

---

The documentation for this class was generated from the following files:

• GGSAcceptanceCheckAction.h
• GGSAcceptanceCheckAction.cpp
