A base class for data providers. More...

#include <DataProvider.h>

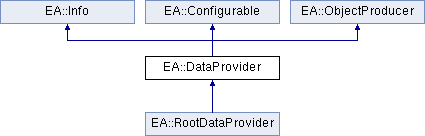

Inheritance diagram for EA::DataProvider:

Public Member Functions
	DataProvider (const std::string &name, const std::string &dataSource)
	Constructor. More...

virtual	~DataProvider ()
	Destructor. More...

virtual bool	Connect ()
	Opens the connection to the data source. More...

virtual bool	Disconnect ()
	Closes the connection to the data source. More...

virtual RetrievalResult	GetObject (const std::string &name, ObjectCategory category, ObjectWrapper &wrapper, std::string &actualName)
	Retrieve the requested data object for current event. More...

virtual RetrievalResult	GetObject (const std::string &name, ObjectCategory category, ObjectWrapper &wrapper)
	Retrieve the requested data object for current event. More...

virtual bool	SetCurrentEvent (unsigned int event, std::vector< std::string > &notValidGlobalObjects)
	Set the current event. More...

virtual bool	SetCurrentEvent (unsigned int event)
	Set the current event. More...

virtual bool	SetCurrentPass (unsigned int pass, unsigned int iteration)
	Set the current processing pass. More...

const std::string &	GetDataSource ()
	Getter for data source string. More...

Public Member Functions inherited from EA::Info
	Info (const std::string &name)
	Constructor. More...

virtual	~Info ()
	Destructor. More...

virtual const std::string	GetType () const

virtual const std::string	GetName () const
	The type (i.e. class) of the object. More...

virtual const std::string	GetVersion () const
	The name of the object. More...

Public Member Functions inherited from EA::Configurable
	Configurable ()
	Constructor. More...

template<typename T >
bool	SetParameter (const std::string &name, const T &value)
	Set the value of a parameter. More...

bool	SetParameter (const std::string &name, const char *value)
	Set the value of a string parameter using a string literal. More...

std::vector< std::string >	GetParameters ()
	Get the names of the parameters. More...

Public Member Functions inherited from EA::ObjectProducer
	ObjectProducer ()
	Constructor. More...

virtual	~ObjectProducer ()
	Destructor. More...

void	DeclareProducedObject (std::string name, ObjectCategory category, std::string alias, std::string store)
	Declare a produced objects. More...

const ProducedObjects &	GetProducedObjects () const
	Getter method for produced objects. More...

virtual std::vector< std::string >	FreeObjects (const std::vector< std::string > &objs, Memory::Status memStatus)
	Free the memory for given objects. More...

Private Attributes
std::string	_dataSource

Additional Inherited Members
Public Types inherited from EA::ObjectProducer
using	ProducedObjects = std::vector< ProducedObject >
	Type for container of produced objects. More...

Protected Member Functions inherited from EA::Info
	Info (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::Configurable
template<typename T >
bool	DefineParameter (const std::string &name, T &variable)
	Set a parameter. More...

	Configurable (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Protected Member Functions inherited from EA::ObjectProducer
	ObjectProducer (const std::shared_ptr< Representation > &impl)

std::shared_ptr< Representation > &	GetRepresentation ()

Detailed Description

A base class for data providers.

This abstract class declares the interface for classes that provide event informations.

Constructor & Destructor Documentation

◆ DataProvider()

EA::DataProvider::DataProvider	(	const std::string &	name,
		const std::string &	dataSource
	)

inline

Constructor.

The #dataSource parameter specifies the data source. It can be anything that identifies how to connect to a data source, like a file name, a glob expression, a database connection string etc. The data source string can be retrieved with the GetDataSource protected method.

Parameters

name	The name of the data provider.
dataSource	Reference to the data source.

◆ ~DataProvider()

virtual EA::DataProvider::~DataProvider ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ Connect()

virtual bool EA::DataProvider::Connect ( )

inlinevirtual

Opens the connection to the data source.

This method opens the connection to the data source specified when calling the constructor.

Returns: true if the data source has been successfully connected.

Reimplemented in EA::RootDataProvider.

◆ Disconnect()

virtual bool EA::DataProvider::Disconnect ( )

inlinevirtual

Closes the connection to the data source.

This method closes the connection to the data source opened by Connect.

Returns: true if the data source has been successfully disconnected.

Reimplemented in EA::RootDataProvider.

◆ GetDataSource()

const std::string& EA::DataProvider::GetDataSource ( )

inline

Getter for data source string.

Returns: The data source string specified as constructor argument.

◆ GetObject() [1/2]

virtual RetrievalResult EA::DataProvider::GetObject	(	const std::string &	name,
		ObjectCategory	category,
		ObjectWrapper &	wrapper,
		std::string &	actualName
	)

inlinevirtual

Retrieve the requested data object for current event.

The possible return values are:

RetrievalResult::SUCCESS if the requested object has been found
RetrievalResult::NOTAVAILABLE if the requested object exists but is not available for current event/pass
RetrievalResult::BADCLASS if the requested object exists but does not match the class specified in #wrapper
RetrievalResult::NOTFOUND if the requested object does not exist
RetrievalResult::ERROR if an error occurred during object retrieval

In case of RetrievalResult::SUCCESS, the requested object is returned to the caller by means of the wrapper parameter; if the data provider recognizes the name of the requested parameter as an alias then it can return the actual object name by setting the actualName parameter. In any other case wrapper must be set equal to nullptr and actualName to "".

In case the data provider does not support aliases then it is sufficient (although not necessary) to override the GetObject(const std::string &, ObjectCategory, ObjectWrapper &) overload and not this method.

Technical note: this is the GetObject overload called by the framework.

Parameters

name	The name of the object.
category	The category of the object to be retrieved (ObjectCategory::EVENT, ObjectCategory::PASS or ObjectCategory::GLOBAL).
wrapper	Return wrapper for the desired object (wraps nothing if the object is non-existent or not available for the current event).
actualName	the actual object name, in case `name` has been recognized as an alias.

Returns: the outcome of the retrieve operation.

Reimplemented in EA::RootDataProvider.

◆ GetObject() [2/2]

virtual RetrievalResult EA::DataProvider::GetObject	(	const std::string &	name,
		ObjectCategory	category,
		ObjectWrapper &	wrapper
	)

inlinevirtual

Retrieve the requested data object for current event.

Data providers that do not support aliases can override just this method instead of GetObject(const std::string &, ObjectCategory, ObjectWrapper &, std::string &).

It is provided mainly for backwards compatibility.

Technical note: this overload of GetObject is not called by the framework; the framework call will be automatically forwarded to this method by GetObject(const std::string &, ObjectCategory, ObjectWrapper &, std::string &) if the latter is not overridden.

Parameters

name	The name of the object.
category	The category of the object to be retrieved (ObjectCategory::EVENT, ObjectCategory::PASS or ObjectCategory::GLOBAL).
wrapper	Return wrapper for the desired object (wraps nothing if the object is non-existent or not available for the current event).

Returns: the outcome of the retrieve operation.

◆ SetCurrentEvent() [1/2]

virtual bool EA::DataProvider::SetCurrentEvent	(	unsigned int	event,
		std::vector< std::string > &	notValidGlobalObjects
	)

inlinevirtual

Set the current event.

This method can be used to communicate to the data provider the number of the current event. Subsequent calls to the GetObject method will load the data objects for the given event. In case the requested event is not available (e.g. there are less events than required) then the returned value will be false.

A list of global objects that were already provided by the provider in previous events, and that will need to be provided again for the current event, can be passed to the caller by filling the notValidGlobalObjects vector parameter. This can be useful to inform the caller about those global objects that needs to be re-read from the data source for the current event (e.g. the caller can remove them from the data store and thus a subsequent request from an algorithm will be passed to the data provider that could in turn provide the new version). Providers encompassing this possibility should override this method.

Parameters

event	The number of the current event.
notValidGlobalObjects	A list of global objects which are not valid and will be removed from data stores.

Returns: true if the requested event is available, false otherwise.

Reimplemented in EA::RootDataProvider.

◆ SetCurrentEvent() [2/2]

virtual bool EA::DataProvider::SetCurrentEvent ( unsigned int event )

inlinevirtual

Set the current event.

This overload of SetCurrentEvent can be overridden by those providers that does not encompass the possibility to invalidate global objects.

Parameters

event The number of the current event.

Returns: true if the requested event is available, false otherwise.

◆ SetCurrentPass()

virtual bool EA::DataProvider::SetCurrentPass	(	unsigned int	pass,
		unsigned int	iteration
	)

inlinevirtual

Set the current processing pass.

This method can be used to communicate to the data provider the number of the current processing pass and of the current iteration for current pass. Subsequent calls to the GetObject method will load the data objects for the given pass.

Parameters

pass	The number of the current processing pass.

Returns: true if the pass setting has been successful.

Member Data Documentation

◆ _dataSource

std::string EA::DataProvider::_dataSource

private

The documentation for this class was generated from the following file:

/builds/mori/EventAnalysis/include/data/DataProvider.h
